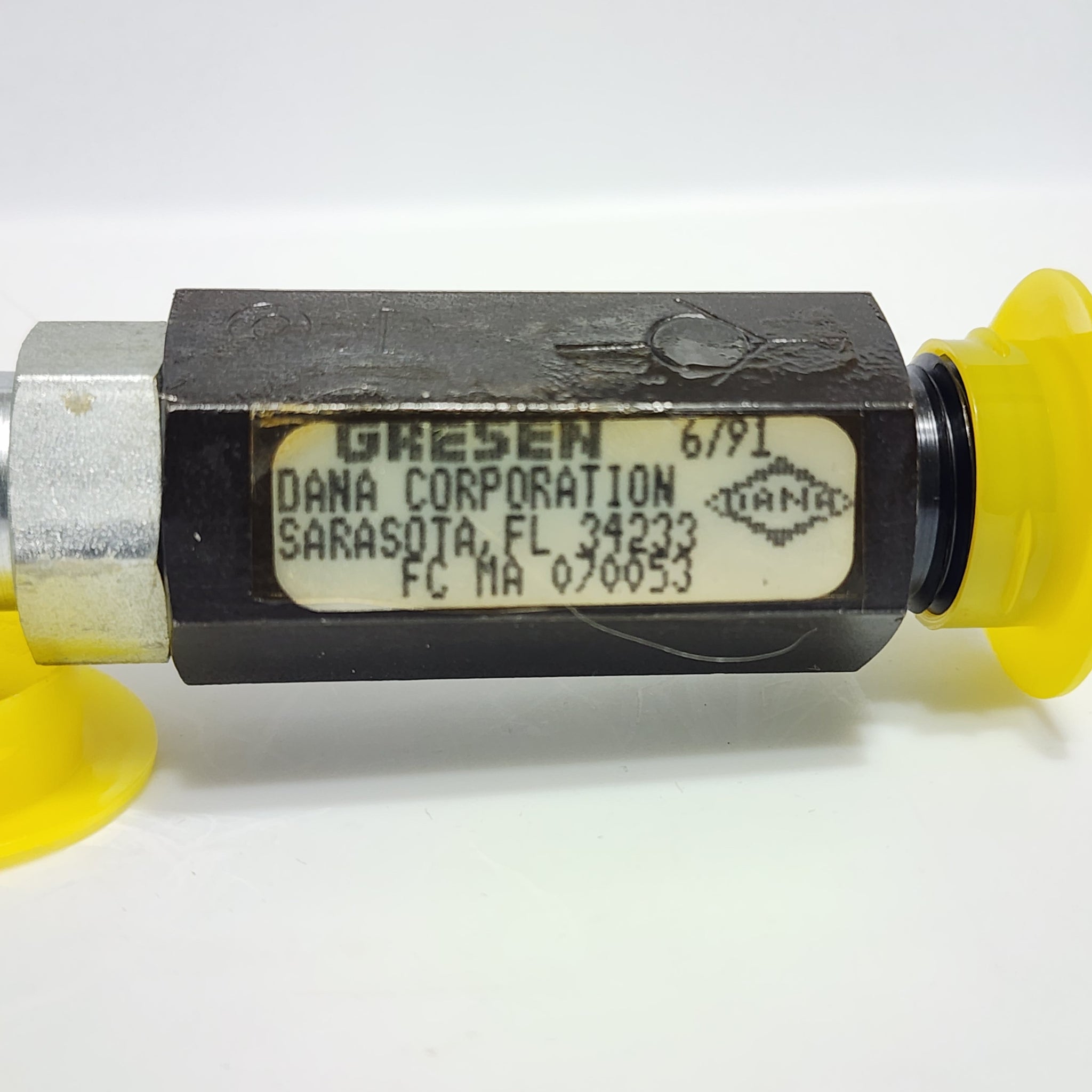

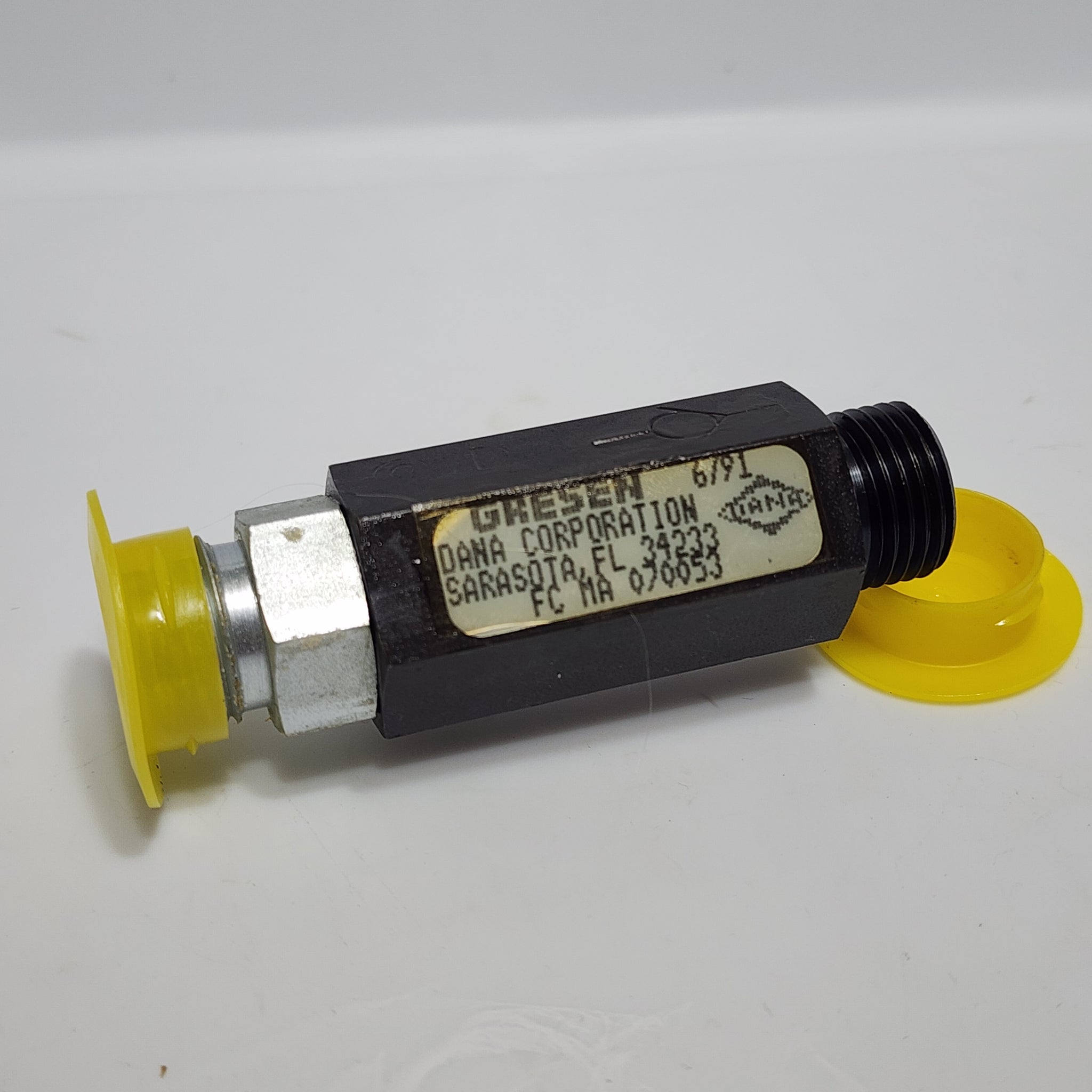

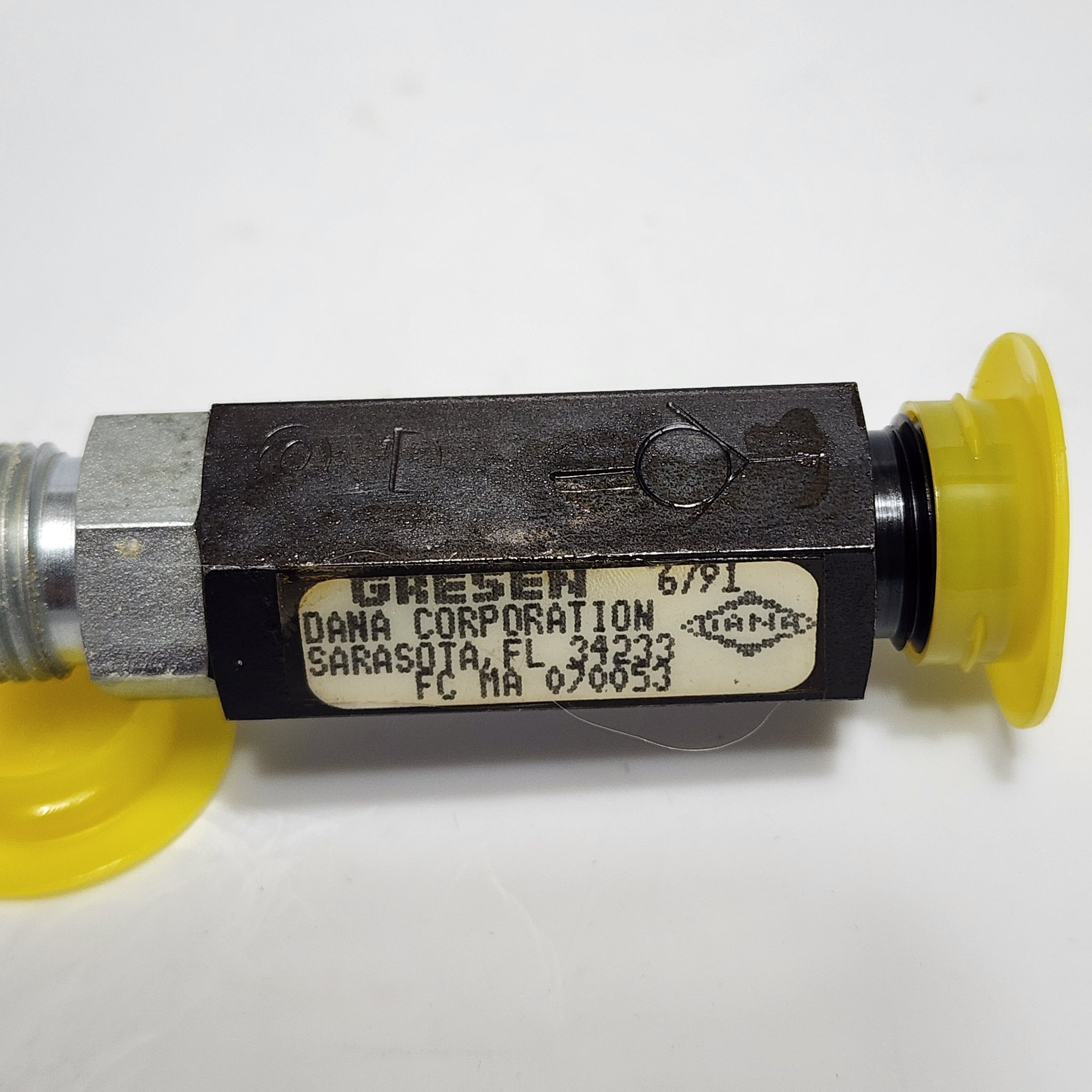

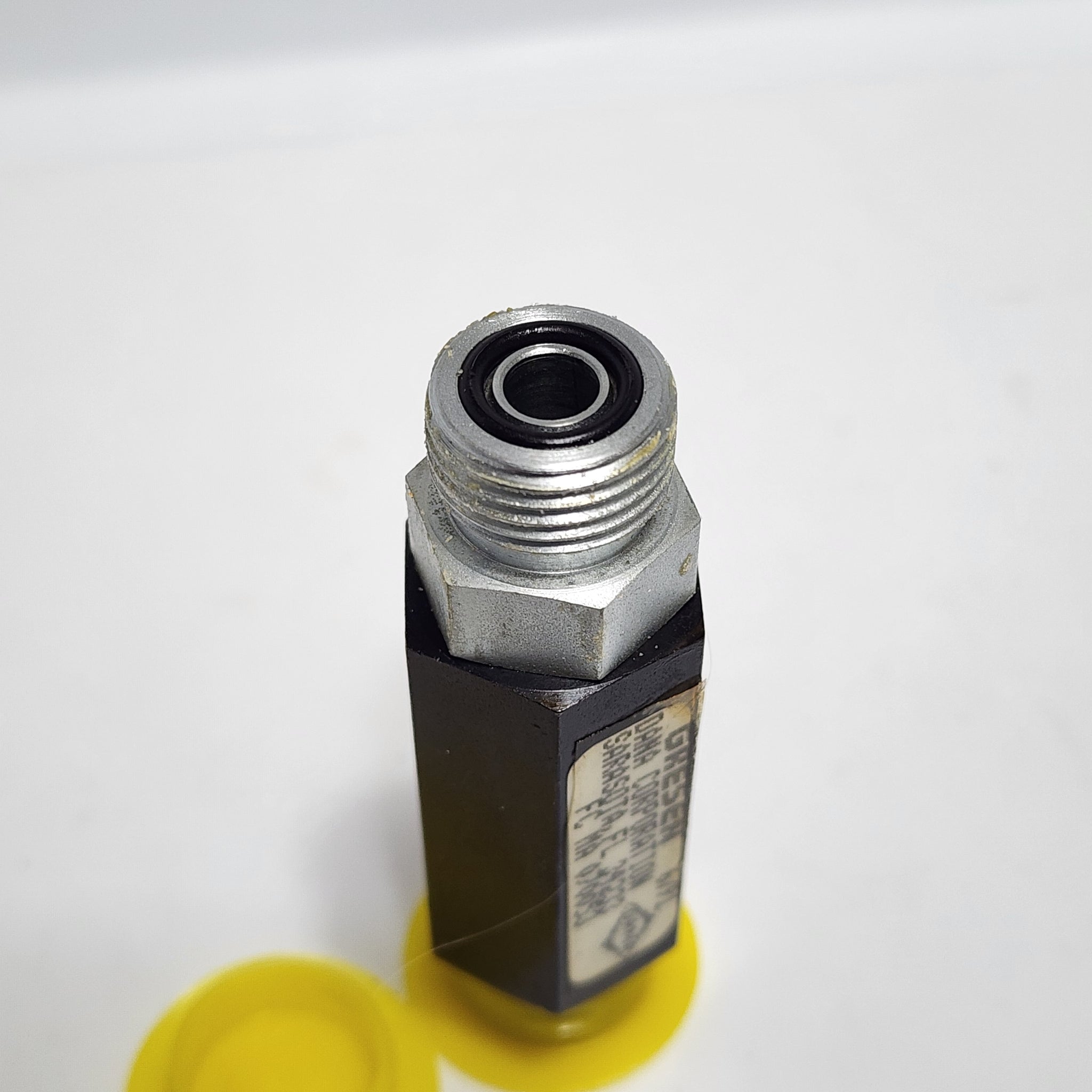

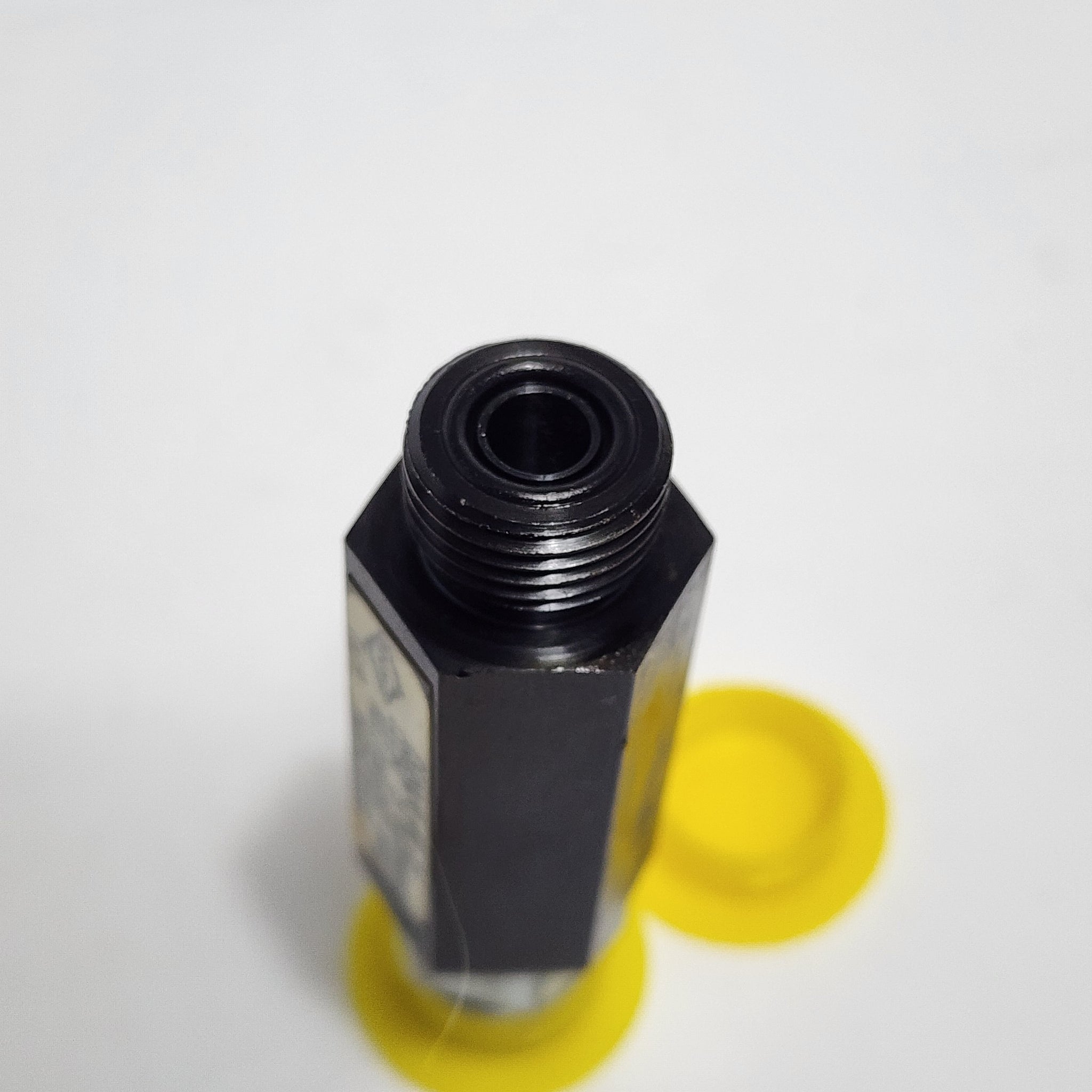

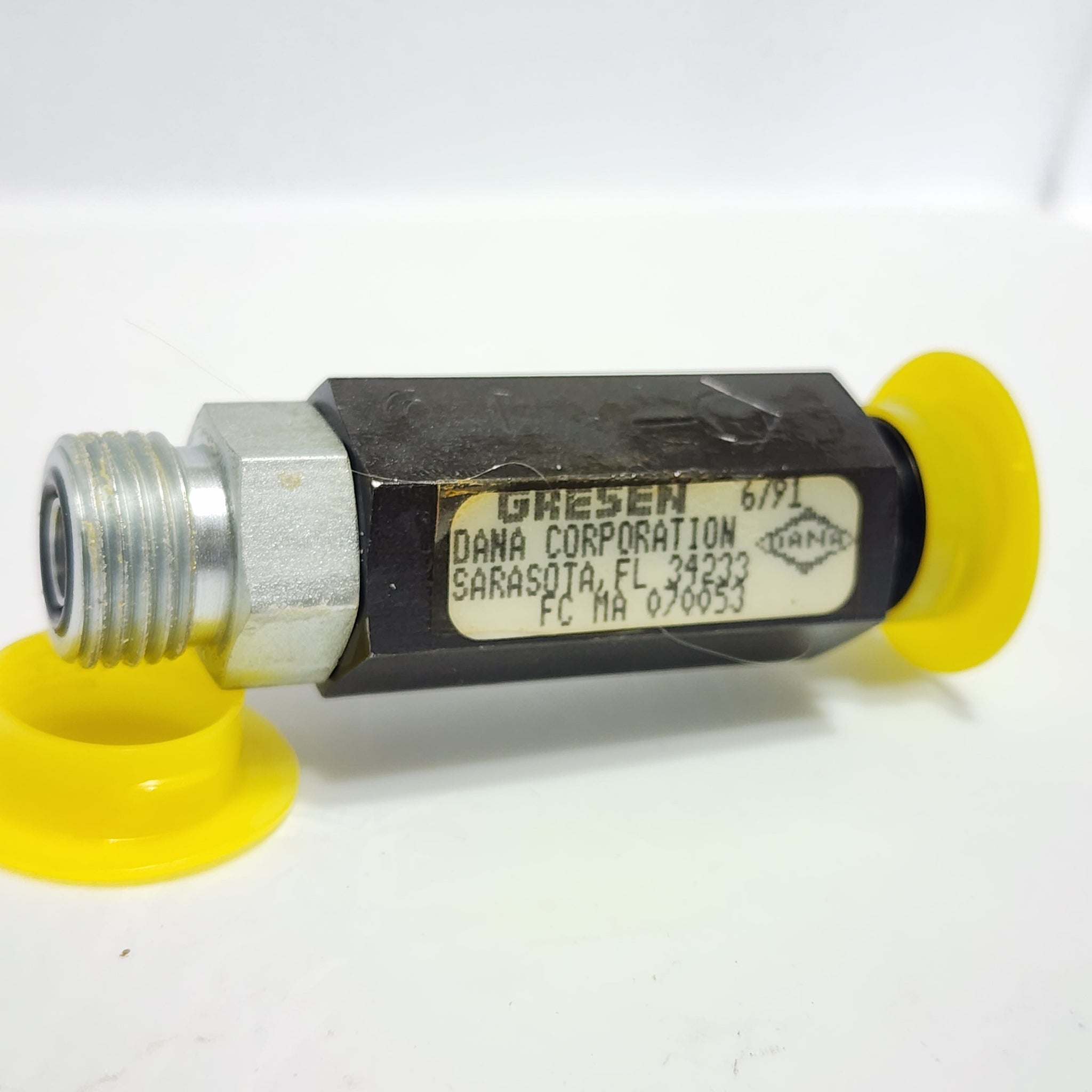

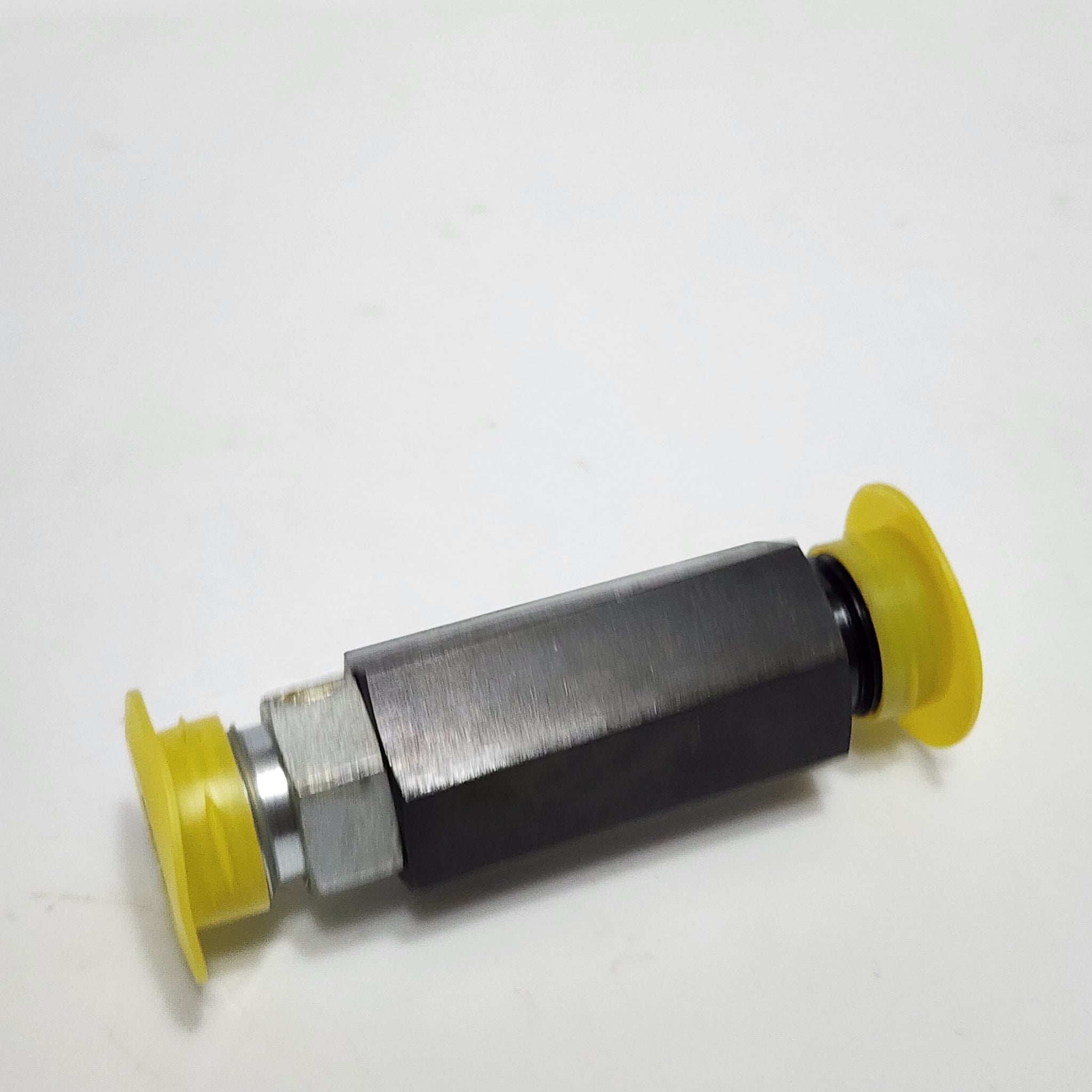

Gresen Inline Check Valve FC MA070053 3/4" NPT
FC MA070053 refers to a specific model of an inline check valve manufactured by Gresen (now part of Parker Hannifin)
.
Key features and specifications
- Function: Allows hydraulic oil flow in one direction and prevents backflow.
- Material: Carbon steel body.
- Pressure: Rated for pressures up to 3000 PSI.
- Flow: Maximum flow of 37 GPM.
- Cracking Pressure: The minimum pressure required to open the valve, which varies depending on the specific model and may be around 7.25 PSI. Other sources mention cracking pressures from 1 to 3 PSI.
- Connections: Typically includes 3/4" NPT (National Pipe Tapered) inlet and outlet ports.
- Installation: Designed for inline installation, .
- Applications: Used in various hydraulic systems to control fluid direction and prevent backflow.
Important considerations
- Installation: Pay close attention to the direction of flow indicated by an arrow on the valve body during installation. Ensure proper alignment and support to prevent stress on the valve.
- Compatibility: Confirm compatibility with the specific hydraulic fluid being used.
- Maintenance: Inspect for damage and debris during maintenance, and replace any worn components like seals or gaskets as needed.
- Safety: Always relieve system pressure and isolate the valve before performing any installation or maintenance. Be aware of potential chemical exposure warnings associated with the product
