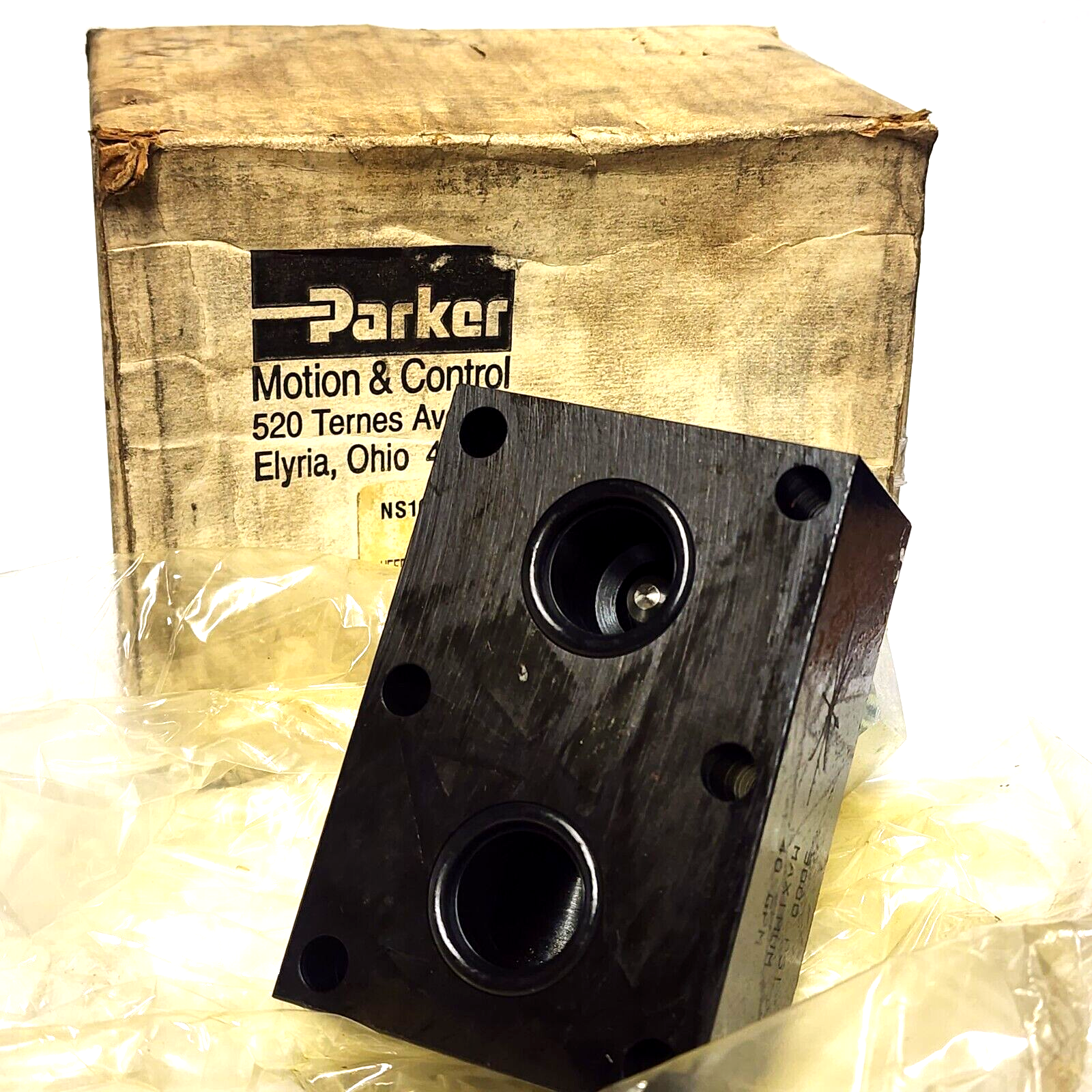

Parker NS1600S Subplate Mounted Flow Control Needle Valve

  • $2,500.00
    Unit price per
  • Save $1,500
Shipping calculated at checkout.


New Parker NS1600S Sub-Plate Mounted Flow Control Needle Valve. Parker's NS series needle valve provides excellent speed control and shutoff for hydraulic applications where a free reverse-flow check is not needed.

Technical Specifications

  • Port Size: 1"
  • Knob Option: Standard
  • Needle option: Standard
  • Seal Material: Nitrile
  • For Fluid Type: Hydraulic Oil
  • Connection Size: 1"
  • Maximum Operating Temperature: +200 °F
  • Minimum Operating Temperature: -40 °F
  • Actuation Type: Hydraulic Pressure
  • Seal Material: Nitrile
  • Product Style: Needle Valve
  • Connection Type: NPT
  • Valve Material: Steel
  • Maximum Flow Rate: 40 Gal/min
  • Maximum Operating Pressure: 3000 psi
  • Mounting Type: Subplate
